Model No.: 121
Warranty Service: None
After-sales Service: Online Technical Support
Engineering Solution Capability: Others
Application Scenario: Hotel, Kitchen, Leisure Facilities, Villa, Apartment, Office Building, Warehouse, Supermarket, Hospital, Park, School, Workshop, Mall, Farmhouse, Sports Venues, Courtyard, Other
Design Style: Modern
Place Of Origin: China
Varieties Of Tile Accessories: Tile Spacers

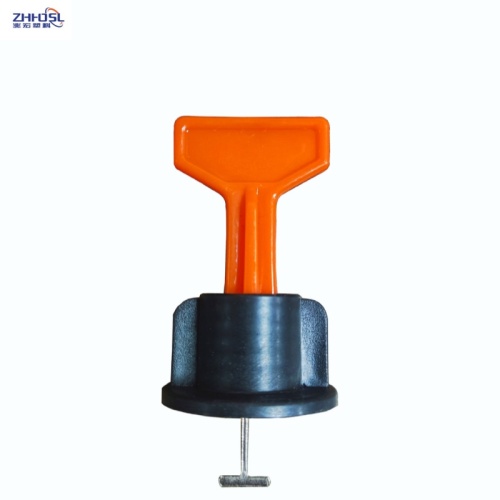

Thickened tile leveling tool Tile leveling tool for floor tile wall tile leveling clip
Desirable tile leveling device -
Smooth and beautiful recycling
Desirable screed material composition - high quality PP plastic +403 stainless steel
Adjustable wrench - humanized adjustment design, easy to operate and easy to adjust
High quality PP plastic
- Semi-crystalline thermoplastic. It has high impact resistance, strong mechanical properties, resistance to a variety of organic solvents and acid and alkali corrosion.
Round hardened stainless steel
Upgraded round and hardened stainless steel, not only in the hardness has been improved. The arc design protects the tile to a greater extent and is not easy to damage the tile when taken out.
Product usage:
1. Lay the first tile, leaving a gap of >2mm (preferably with a cross card) close to the adjacent brick
2. Insert the T-shaped needle along the tile gap
3. Then, rotate 90 degrees and stick the T-pin in the bottom of the two tiles
4. Use the adjusting wrench to tighten the adjusting cover clockwise until the two brick surfaces are at the same level
5. About 5-6 hours after leveling, rotate the adjustment cover in the opposite direction before the cement or tile glue is dry and solid, and remove the 90 degree T-shaped needle to a straight shape
6. Installation effect display
--------------------------------------------------------------------------------------
The quality of the rotary screed mainly depends on two points, the first is the design of the thread, divided into full thread or half thread, full thread lasts longer and is not easy to slip, and it is easier to rotate: the second is to look at the steel needle, the steel needle should first be chamfered round enough so that it will not hurt the enamel of the tile when rotating, and the hardness of the heat treatment should be just right, not too hard or too soft. Too hard easy to break too soft easy to deform. The last point is that the steel needle of the screed can not be directly used to leave the seam because it needs to rotate back and forth, to be used with the cross card, first use the cross card to leave a good seam, and then use the steel needle into the seam to rotate the screed, the thickness of the steel needle of the factory is 1.5 mm round needle, so the seam of 1.5 mm and above can be easily flattened.
